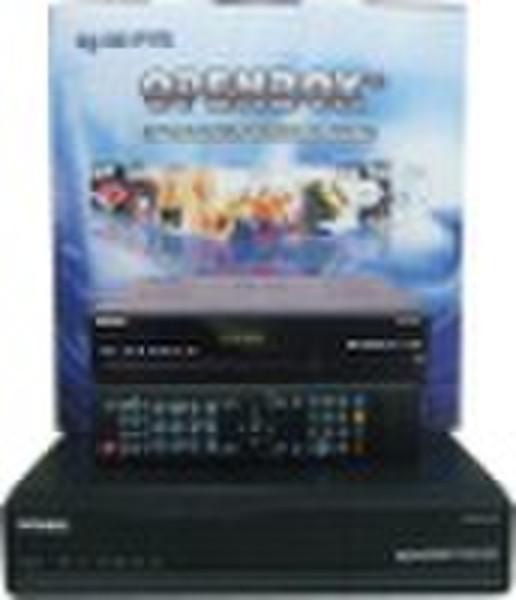

OPENBOX S9 HD PVR high definition digital satellit

1.SCPC & MCPC receivable from C/Ku band satellites. 2.multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported) 3.Support MHEG-5,HDMI 1.3,Support PVR(store in USB disk),Multimedia files playback(by USB); Automatic and manual channel scan options. 4.Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech, selectable. 5.Multiple display mode: 1080i/720p/570p/576i/480p; MPEG-2 / H.264 Hardware decoding; 6.2 x Scart (RGB, FBAS or S-Video); 7.Analog audio output: stereo(L+R); 8.Digital audio output: S/PDIF by coaxial and optical; 9.CA 1x slot and CI 1xslot 10.10/100Mbit Ethernet Interface 11.Screen format:auto, 4:3, and 16:9; 12.Upgrade software through USB2.0 port; 13.Powerful program management function, parent lock; 14.10/100Mbit Ethernet Interface; DVB-S2 Input Frequency:950 2150MHz Loop Out Frequency:950 2150MHz Input Level:-65 -25dBm Input Impedance:75¦¸ LNB Power: Auto/14v/18v/OFF, Imax = 500mAVideo decoderVideo Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-DeviceAudio decoderAudio Compression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHzOutput digitalOutput Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, ToslinkVideo parameterInput Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 StandardTV-ScartOutput: FBAS, RGB, S-VideoSerielle Interface RS 232 Typ RS232 bidirectional Bit rate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of FirmwareEthernet10/100 MBit compatible interface Function: Update of FirmwareUSB 1 x USB 2.0 Host ,PVRLNB power and polarisation per tuner LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mACount of active satellite position DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor ControlExternal PSU Input:110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0APhysical specificationAmbient Temperature +15 °C...+35 °C Humidity < 80% Size (W x D x H): 300 mm x 220 mm x 56 mm Weight: 1,8 kg without HDDPower AC input range:100-240VAC 50/60Hz Power Consumption (Standby): Max. 10W (<1 W)
